Short answer: choose a hinged lid with a snap latch for cases that travel - it stays attached and stays shut in a bag. Choose a slide-off lid for shelf or drawer storage - it has no moving parts, comes fully off for easy access, and the case is about 10 mm shorter front to back for the same contents.
How each lid works

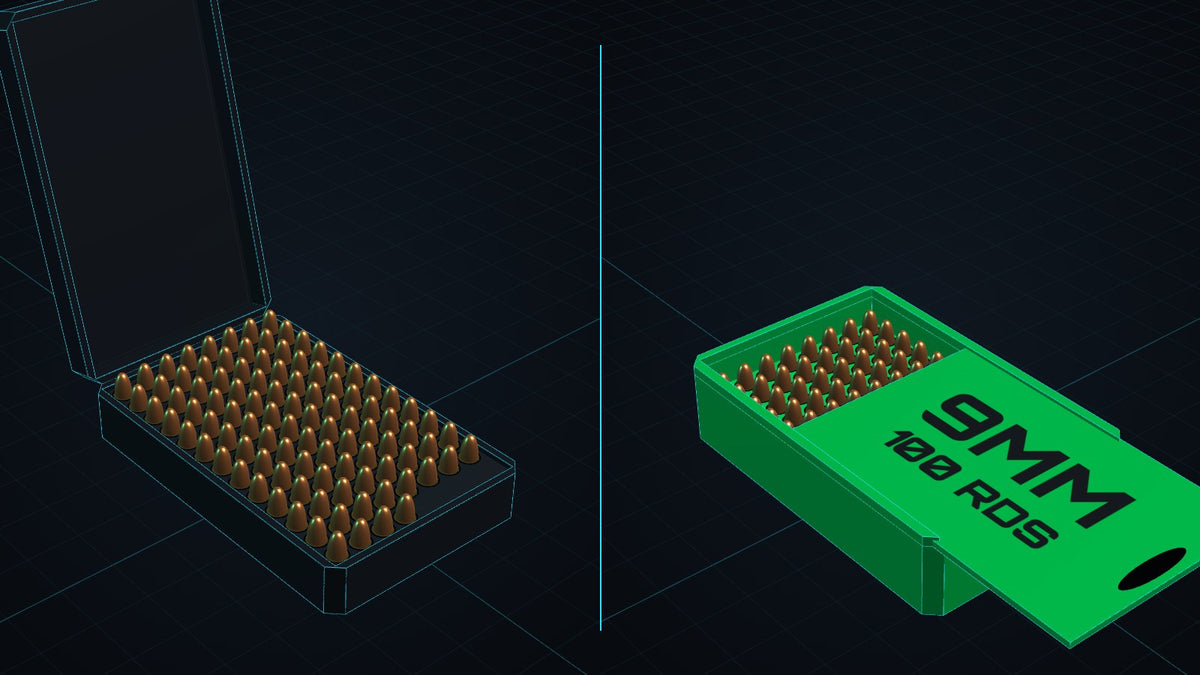

Hinged lid: a printed-in hinge along the back and a snap latch at the front. It opens like a clamshell and the lid never leaves the case.
Slide-off lid: the lid is a flat plate that runs in angled rails along the two long walls. Slide it toward the open end and it comes off completely; a thumb notch gives you something to push on.
Side by side
| Hinged lid | Slide-off lid | |
|---|---|---|
| Opens | Flips up on the hinge | Slides out of the rails |
| Lid stays attached | Yes | No - it comes off |
| Stays shut in a bag | Yes - snap latch | Best kept upright |
| Moving parts | Hinge and latch | None |
| Extra size | +10 mm front to back for hinge and latch | +2 mm in height, slightly thicker long walls |
| Best for | Range bags, travel, grab-and-go | Shelves, drawers, safes, stacking |
Same loadout, both lids
| Holds | Hinged lid (mm) | Slide-off lid (mm) | Printed as |
|---|---|---|---|
| 100 x 9mm | 106 x 177 x 38 | 108 x 167 x 39 | one plate |
| 100 x 5.56 | 103 x 172 x 65 | 105 x 162 x 67 | one plate |
| 4 x Glock 17 | 116 x 155 x 42 | 118 x 145 x 44 | one plate |
| 25 x 12 ga | 109 x 194 x 78 | 111 x 184 x 80 | one plate |
Which is stronger?
Both are printed as solid-walled cases. The hinge and latch are the parts that see wear on a hinged case; a slide-off lid has nothing to wear except the rails, which is why it suits cases opened many times a week in a drawer or safe.
Can the lid carry a label?
Yes, on both. The lid marking prints the caliber and round count (or your own text) into the top of the lid in a second color. Pick your lid type and marking in the case builder and watch the 3D view open it.
Frequently asked questions
Is a slide-off lid secure for travel?
It is held in rails but has no latch, so for a range bag or a car a hinged lid with a snap latch is the safer choice.
Which lid makes a smaller case?
The slide-off lid case is about 10 mm shorter front to back (no hinge or latch) and about 2 mm taller.
Can a slide-off lid get lost?
It comes fully off, so it can be set aside. Slide it back into the rails after use.
Do both lid types fit the same contents?
Yes. The inside layout is the same; only the walls and lid change.
Can I put the caliber on either lid?
Yes. Lid marking works on hinged and slide-off lids.
